WiFiX Blaster 2×2 MIMO Flat Panel 5G Antenna 600-4000MHz

SKU: WIFIXBLASTER-5G
About this Item

High Power Wide Band Multi-Carrier Cellular 5G 4G LTE 2×2 MIMO Flat Panel Directional Antenna

  • 5G and 4G Bands supported
  • High Power Directional Flat Panel Design
  • 2×2 MIMO
  • Includes mounting hardware

Great for multiple line of sight scenarios

$79.99

Description

The WiFiX Blaster 2×2 MIMO Flat Panel 5G Antenna 600-4000MHz is our newest addition to our antenna selection, offering a wide frequency band support and the simplicity of two antennas in one easy to mount and aim package.

Supports – 3G / 4G / 5GNR – Bands: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 11 / 12 / 13 / 14 / 17/  18 / 19 / 20 / 21 / 25 / 26 / 28 / 29 / 30 / 32 / 34 / 38 / 39 / 40 / 41 / 42 / 43 / 48 / 66 / 70 / 71 / 74 / 75 / 76 / 77 / 78

Works on ALL of the US 4G and 5GNR networks. AT&T, Verizon, T-Mobile and more.

Our Blaster 5G works great with our Made in the USA Heavy Duty J-Pole Style Antenna Mount

Our High Power Hotspot Antenna’s polarity is +45/-45 and its mount is designed to accommodate different installations. The adjustable angle mounting system allows the antenna to be easily configured for installations requiring different positioning to match your individual cellular towers antenna polarity.



The Blaster 5G Includes:
(1) 2×2 MIMO Antenna, with 2 – N Type Female Connectors
(1) Adjustable Mounting Kit ( For Pole/Mast sizes up to 1-7/8″ )

WiFiX-Blaster5G-Amazon-Listing-7

This is a very high power antenna for 4G and 5G hotspots, routers, or direct to modem use.

Specifications

Specification
Electrical
Frequency Range 600-4000MHz
Gain 7 / 10dBi
F/B Ratio 15 / 20dB
V.S.W.R ≤ 1.8
Radiation Directional
Horizontal Beamwidth 70°/75°
Vertical Beamwidth 75°/60°
Polarization ±45
Lightning Protection DC-Grounded
Maximum Input Power 50W
Impedance 50Ώ
Connectors 2 X Type N Female
Cable Type RG58U
Cable Length 30CM
Antenna Radome Material ABS
Mount Type Pole / Mast Mount
Max Diameter of Installation Pole ~ 1-7/8 inch Ø
Mechanical
Dimensions (Not including mounting bracket) 13 – 3/8″ x 8 – 13/16″ x 2 – 7/16″ (340 x 225 x 64 mm)
Weight – (Antenna / Packed) 2.42lbs (1.1KG) / 3.75lbs (1.7KG)
Operating Temperature -40℃ to+60℃
RoHS Compliant Yes

Installation Tips

When installing two of these antennas for a 4×4 MIMO configuration, optimal spacing is to physically space them about 2 feet apart.

More detailed installation info coming soon.

Plots and Charts

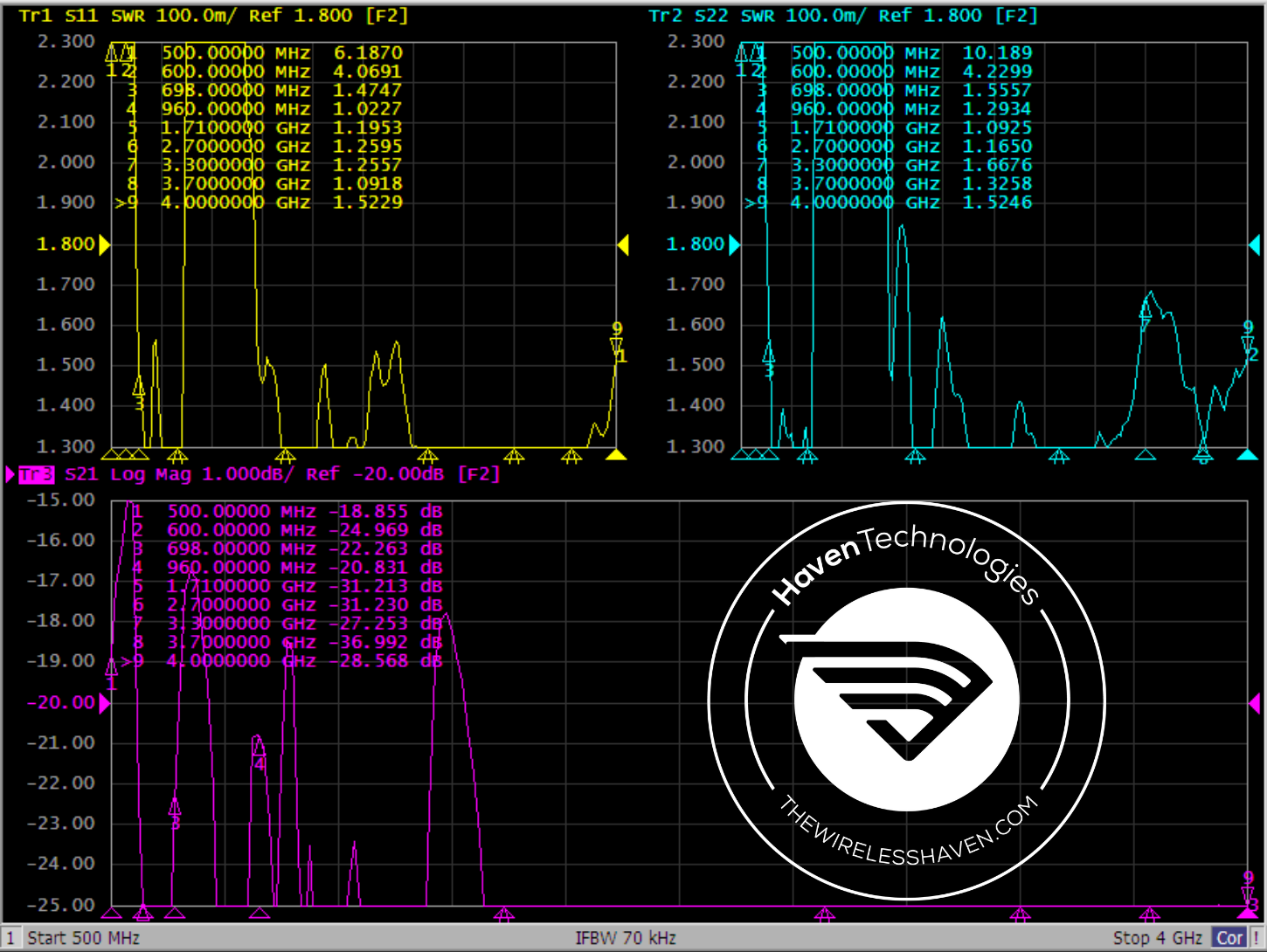

VSWR



Plots

3 reviews for WiFiX Blaster 2×2 MIMO Flat Panel 5G Antenna 600-4000MHz

  1. Tyler Bell (verified owner)

    Alright, I don’t see first-hand reviews on this so let me start by saying – this antenna is badass. I already owned an Amazboost cellular booster I got from Amazon for about $180, but this thing just blows it out of the water. Pair it with the LMR-400 cables and you won’t believer the difference. I’ve been tracking my MBPS, signal strength, jitter, ping, CSQ, RSSI, RSCP, and ECIO for a few weeks now. Do I know what these all mean? Hell no. Does Richard at Wireless Haven know what they mean, and will give me better advice for knowing it – absolutely. He recommended me this antenna and I went from averaging about 82 MBPS download to now 168 MBPS in an area notorious for bad signal. A 100% increase in download speed for the less than $100 cost of this antenna, and some high quality LMR-400 cables is just insane. I spent about $180 on my stupid booster from Amazon, that only produced about 20-30% increase. Talk to these guys. Tell them your situation. There is no doubt in my mind they will take care of you with a degree of knowledge we can’t even hope to achieve.

  2. Tyler Bell

    Can I mount this on the side of my house to replace my current signal booster? My current booster is running a coax cable, what cables would I need for Sierra EM9191 modem?

    I’m trying to decide between this and the AO 4OA6006000-NF.

  3. rvanmanen

    Looking to get 2 of these for a 4×4 mimo setup with a Quectel RM502Q-AE modem in a M01K21 router. How do these attach to the RM502Q-AE for best configuration? 1 antenna on ports 1&2 and the other on ports 3&4, or is it 1 antenna on ports 1&3 and the other on 2&4, or 1&4 and 2&3?

    • Richard

      Hello,

      You will want to connect to the antenna ports as follows:

      Blaster 5G Antenna 1: Ports 0 and 3

      Blaster 5G Antenna 2: Ports 1 and 2

      Refer here: RM502Q-AE Antenna Port Connections

      Also, we recommend antenna separation of approximately 2 feet. They do not need to be angled or tilted at 45 degrees, both should be vertical when installing.
