698-2700MHz 6dBi-8dBi 4G LTE Omni Antenna (Vertical) N Type Male

$47.78

Ideal for RV, marine, and mobile applications and suitable for downtown or wooded (foliage) areas with no LoS with towers

    The WiFix AO 1LW727V8 is a 698-2700MHz 6dBi-8dBi 4G LTE Omni-Directional Antenna.  The antenna is Vertically Polarized, 23.625 inches (600mm) tall with N Type Male connectors.   It’s Wideband design (698-2700MHz) covers the vast majority of carrier bands and frequencies.

    This antenna is also available with N Type Female connectors.

    We recommend sealing the antenna connectors with dielectric grease and self-bonding silicon tape, when installing any outdoor antenna and cabling.









    The WiFix AO 1LW727V8  has a horizontal radiating pattern on a 360 degree radius which eliminates the need of aiming the antenna at the cellular tower.













    Its Omni-directional design makes it ideal for RV, marine, and other mobile applications.  It is equally suitable for downtown urban settings and other static installations that lack clear Line of Sight (LoS) with the cellular tower–possible due to buildings, foliage and hills.

    The AO 1LW727V8 is engineered with a strong fiberglass casing to provide ultimate sustainability against extreme weather conditions such as high temperature, strong winds and rain.

    The N Type Female connector is commonly used when connecting the antenna to a router utilizing 50 ohm low loss coax cable (i.e., LMR200|240|400|600).

    The N Type Male connector is preferred when connecting the antenna directly to an external router Enclosure.  For enclosure applications, there are a couple of options when using a N Type Female bulkhead pigtail connector that extends through the router enclosure:

    SMA Male Right Angle connector for connecting to a router’s SMA Female antenna connectors

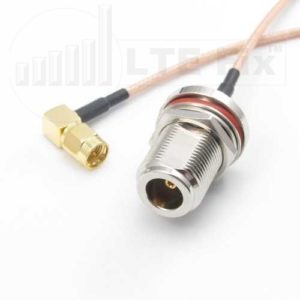

    N Type Female Bulkhead to SMA Male (Right Angle) Pigtail

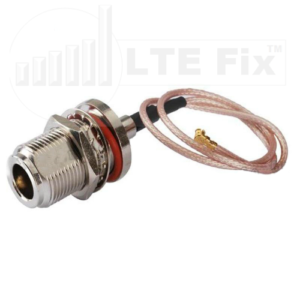

    U.FL Female (Right Angle) to N Type Female Bulkhead for connecting directly to a modem’s U.FL antenna connector port.



    ufl-to-N-female-bulkhead
    U.FL to N Female Bulkhead Pigtail

    Mounting U-bolt clamps and brackets are included.



    Weight 23 oz
    Dimensions 28 × 1 × 1 in
    Antenna Type

    4G LTE Indoor Omni-Directional, 4G LTE Outdoor Omni-Directional

    Antenna Cable Connector 1

    N Type Male

    Carrier

    AT&T, Boost Mobile (Sprint), Cricket Wireless (AT&T), FreedomPoP (Sprint), MetroPCS (T-Mobile), Mint (T-Mobile), Project Fi (Sprint, T-Mobile), Simple Mobile (T-Mobile), Sprint, T-Mobile, U.S. Cellular, Verizon, Virgin Mobile (Sprint)

    Specifications

    ELECTRICAL:
    Frequency Range 698-960/1710-2700MHz
    Band width 262//990MHz
    Gain 6/8dBi
    V.S.W.R ≤1.5
    Radiation Omni-Direction
    Horizontal Beam width 360°
    Vertical Beam width 16°
    Polarization Vertical
    Lightning Protection DC Grounded
    Maximum Input Power 100W
    Impedance 50Ώ
    Connector N Type Male
    Antenna Radome Material Fiberglass
    Mount way Pole
    Diameter of Installation Pole Ø30mm|1.1811in to Ø50mm|1.9685in
    MECHANICAL:
    Dimensions Φ20|0.787in x 600mm|23.622in
    Weight 650g
    Operating Temperature -40℃ to+70℃
    Rated wind velocity(m/s) 60m/s
    RoHS Compliant YES
