Directional MIMO Antenna 2400-2700MHz WiFi 19dBi (± 45° ) – N Female Connectors – also Supports 5G 4G LTE Cellular Hotspot

$210.75

Equipped with Type N Female connectors. High performer for Sprint/T-Mobile Band 41, and others in the same cellular frequency range.

    WiFix ADM 1DE2427X19 NF 19dBi MIMO 2×2 X-Polarity directional antenna with Type N Female connectors

    The ADM 1DE2427X19 NF WiFi Cellular 19dBi Directional MIMO antenna is a high quality directional panel with dual X polarity (slant ± 45°) and designed to accommodate devices at MIMO 2×2. The antenna is engineered for WiFi and Cellular applications, as well as PTP (Point-to-Point) and PMP (Point-to-Multipoint) as a client antenna.

    This NF version is equipped with two Type N Female connectors to better accommodate applications using 50 ohm low loss coax cables. We recommend sealing the antenna connectors with dielectric grease and self-bonding silicon tape, when installing any outdoor antenna and cabling.

    The ADM 1DE2427X19 NF is a narrow band directional panel antenna engineered to improve signal strength and reception over the 2300MHz to 2700MHz frequency range.  It is ideal for rural, suburban and other locations where the mobile signal is poor or less than desirable, or where a better signal is required to take advantage of carrier aggregation. Its narrow range targets LTE FDD Band 7 and TDD Bands 38, 40 and 41, Bluetooth and WLAN 2.4GHz (802.11 b/g/n).  Some customers have reported use of B4, B30, and B66 as well, though we cannot guarantee this.

    Its unique dimensions and aesthetic appearance accommodate installations at most any location, even for high demanding applications and customers.

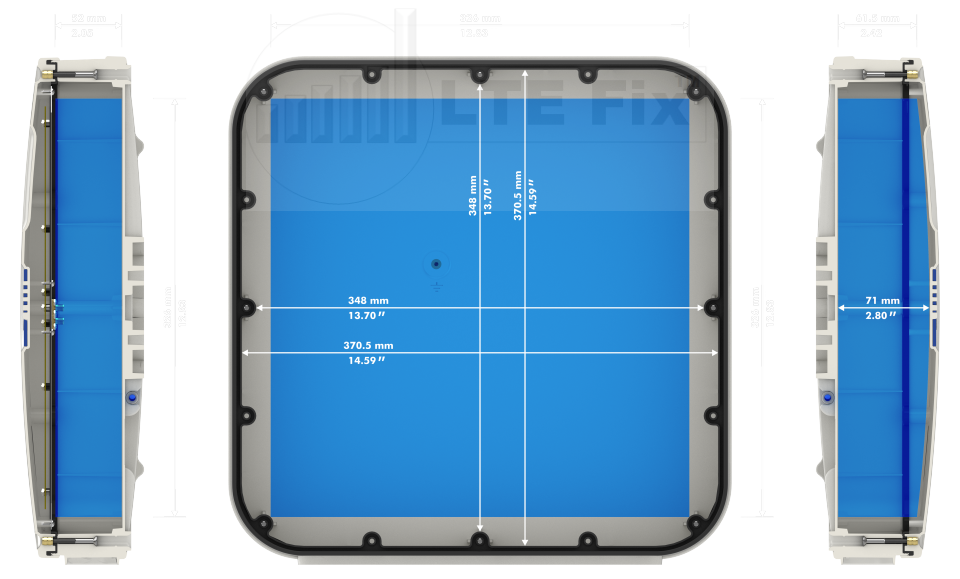

    The antenna component and circuitry are integrated within our top quality WiFiX Large (15.5 in x 15.5 in x 3.8 in) enclosure system.

    wifix-large-enclosure



    wifix-large-enclosure
    WiFix Large Enclosure

    The WiFix ADM 1DE2427X19 NF is suitable for both indoor and outdoor (IP67) installations, both wall and pole mask mounting.



    wall-mast-installations
    Wall and Mast Installations



    WiFix systems are engineered of UV resistant ABS plastic material that is resistant to extreme weather conditions like rain, snow and humidity. They can safely operate in temperatures ranging from -40°C up to 80°C.  WiFix designed sealing systems guarantees a waterproofed level of IP67.

    wifix-ip67
    WiFix Systems are IP67 Waterproof



    The WiSecure mounting system is engineered to couple stability and attractiveness in one product. Its design is made of a special fiberglass reinforced poly amide plastic, which is super rigid–even in extreme weather conditions.  Its innovative design and composite makeup, compared to metal brackets, offers better performance and a rust free life-time. WiSecure further enables the antenna position and aligning in two separate polarization settings.



    wisecure-mount
    LTE Fix WiSecure Antenna Mounting System
    WiSecure Antenna Mounting System
    WiSecure Antenna Mounting System

    The SKU for this model changed from DM25X19 to ADM 1DE2427X19 NF

    NOTICE: This antenna listing comes with ONE WiSecure Antenna Mount included with your purchase of the antenna. You do not need to purchase a separate mounting system.

    Weight 80 oz
    Dimensions 16 × 22 × 4.75 in
    Antenna Type

    4G LTE Outdoor Directional

    Carrier

    Boost Mobile (Sprint), FreedomPoP (Sprint), Sprint, Virgin Mobile (Sprint)

    Antenna Cable Connector 1

    N Type Female Straight, RJ45 Waterproof IP67

    Specifications

    DM25X19-specs
    4G LTE MIMO Antenna DM25X19







    Carriers | Bands

    The ADM 1DE2427X19 NF is a narrow band high frequency antenna:

    • LTE Bands – 7, 38, 40, 41, 2305-2360
    • WLAN – 2.4 GHz
    • WiMAX – 2.3 GHz, 2.5 GHz
    • RFiD – 2400 – 2483 MHz
    • Bluetooth – 2400-2483 MHz
    • ISM – 2400-2483 MHz
    Applications
    • PtP connections
    • PtM Connections
    • RF Systems Integrations
    • High Gain B41 Cellular Modem | Hotspot and Booster use
    • High Powered 2.4Ghz WiFi Broadcasting and receiving
