Aerohive AP170 2.4GHz 5GHz Outdoor Access Point

SKU: AEROAP170
About this Item

$94.50

Description

AEROHIVE NETWORKS AP170 is a high-performing, cost-effective, and rugged 802.11n outdoor access point (AP). The AP170 provides high-performance dual concurrent (2.4GHz and 5GHz) 802.11n (2×2) MIMO as well as a 10/100/1000 Ethernet port.

This is a Mesh WiFi Network Device, made to work alone or with more than one AeroHive Access Points.

The Aerohive AP170 is an enterprise-grade, high performance (2×2) MIMO solution, designed for high bandwidth demand outdoor wireless environments. With extended temperature range and a watertight chassis, the AP170 can deployed in most every outdoor environment on earth. With four antennas and the ability to provide service concurrently on both 2.4Ghz and 5Ghz bands, the AP170 provides both high speed mesh and support for 802.11n as well as legacy 802.11a, b, and g clients, through Aerohive’s industry unique and resilient controller-less architecture.

The AP170 can be configured and controlled via a free account with the HiveManager NG or by through the Aerohive CLI using PuTTy.

Installation Requires (Not included):

  • 2 x 5GHz Type N Male Antennas
  • 2 x 2.4GHz Type N Male Antennas
  • or, 4 x 2.4GHz/5GHz Dual Band Type N Male Antennas
  • 48V – .35A 20W POE Adapter Injector

Note: Flat panel directional antennas may also be used

Key Features and Benefits

Cooperative Control

All Aerohive access points are built upon the deep, feature rich HiveOS operating system. HiveOS is the backbone of the Aerohive Cooperative Control architecture, and allows the access points to organize into groups or “hives” that coordinate advanced features such as layer 2/ layer 3 roaming, cooperative RF management, security information, and mesh networking without requiring a controller. Cooperative Control provides all the benefits of coordinated, next generation

Wi-Fi with lower Total Cost of Ownership (TCO), more reliability, more scalability, higher performance, and with a focus on truly optimizing mobility in a mobile first enterprise. High Performance, Secure Wi-Fi with On-Demand Provisioning

The Aerohive AP170 is a rugged outdoor 802.11n access point with integrated features such as RADIUS, 802.1X security, Captive Web Portal, and cloud-based management. By integrating with the Aerohive Cloud Services Platform, the AP170 can be brought online simply by plugging it in. It will automatically find the HiveManager, either in Aerohive’s public cloud or on a customer premises, download complete configuration, security, and corporate policies, and instantly provide service for connected devices.

AeroHive AP170 with antennas attached and setup



Integrated Application Priority and Control

By using the robust Quality of Service (QoS) and stateful firewall built into Aerohive access points, the AP170 supports optimizing user application experience, even outdoors. Aerohive access points allow an administrator to create customized user profiles based on context, such as identity of the user, device type, location, and time of day, to prioritize or block applications based on what is critical to that particular user. This user-focused approach ensures every user experience is optimized for mobility.



Features & Benefits

  • Two radios provide concurrent 802.11a/n and 802.11b/g/n connections with no degradation in performance
  • Automatic or dedicated mesh backup
  • Supports 802.3at PoE



Advanced Features

  • Integrated application control and prioritization
  • On-device RADIUS with directory support, Captive Web Portal, DHCP server, and spectrum analysis
    • Max 256 concurrent RADIUS authenticated users
    • Max 512 DHCP clients per AP



Hardware Assisted Features

  • Trusted Platform Module (TPM)–Hardware-based key storage and encryption
  • Wireless privacy & authentication Wi-Fi CERTIFIED™ WPA™ and WPA2™, 802.11i, WEP, 802.1x, PSK
  • Granular user profile-based management defines QoS, mobility policies, and security policies for each user that enters the network
  • Encryption: AES: CCMP, TKIP, and RC4 (WEP only)
  • Marking and policing–WMM™ (802.11e) for wireless, 802.1p and/or Diff Serv
  • Wi-Fi CERTIFIED WMM
  • WMM power save (U-APSD)



Product Specifications

Included Mounting Options

  • Wall Mount
  • Pole Mount 1 to 2.5 inches in diameter

Radio Specifications—802.11a

  • 5.150–5.950 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback Radio Specifications—802.11b
  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallback Radio Specifications—802.11g
  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback Radio Specifications—802.11n
  • 2.4–2.5 GHz & 5.150–5.950 GHz Operating Frequency
  • 802.11n Modulation
  • Rates (Mbps): MCS0 – MCS15 (6.5MBps – 300Mbps)
  • 2×2 Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 and HT40 High-Throughput (HT) Support
  • A-MPDU and A-MSDU Frame Aggregation Antennas
  • 4x N-type jack antenna connections for external antennas
  • Antennas sold as accessory Interfaces
  • Autosensing 10/100/1000 Base-T Ethernet PoE (Power over Ethernet 802.3at) Port



Physical

  • LxWxH: 9 5/8 x 7 7/8 x 3 in. w/ locking hole extensions
  • LxWxH: 8 13/16 x 7 1/8 x 2 3/4 w/o locking hole extensions
  • 4.3 lbs, 6.05 lbs w/antennas and brackets Environmental
  • Operating: -40 to +55°C, Storage: -40 to +80°C
  • Humidity: 95%



Environmental Compliance

  • IP 68



Power Options

  • 802.3at Power over Ethernet (PoE) port



Power Specifications

  • IEEE 802.3at PoE Power
  • 48V, 0.625 A (802.3at)
  • RJ-45 power input pins: Wires 4, 5, 7, 8 or 1, 2, 3, 6



Power & Sensitivity Table

Power shown is per transmit chain and is a maximum power that the radio is capable of, power limits will be limited by local radio regulations.



Power & Sensitivity Table

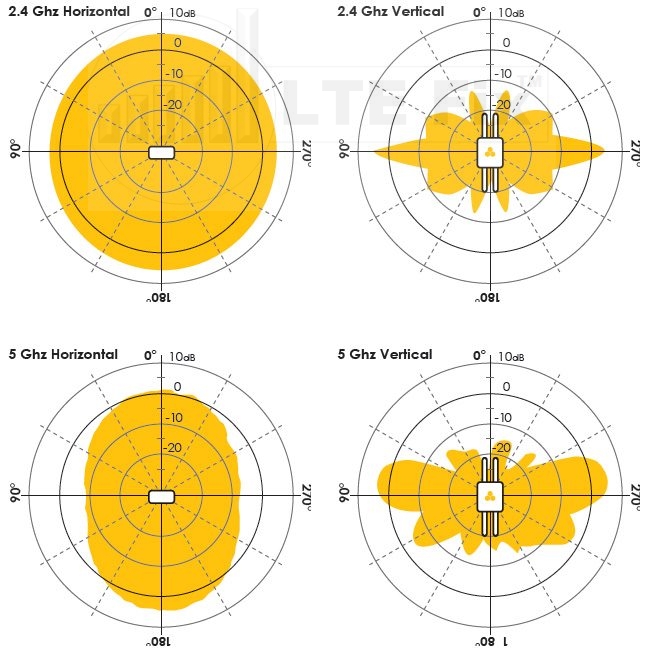

RF Coverage Maps



AeroHive AP170 Signal Coverage Plots - LTE FIX
AeroHive AP170 Signal Coverage Plots – LTE FIX
