WiFiX Medium Router PCB Enclosure Kit

$88.75

Install your router, PCB or other device outdoors

The WiFiX Medium Router PCB Enclosure Kit allows the installation of a router, PCB or other device for outdoor applications.



wifix-mimo-antenna
WiFix MIMO LTE Antennas

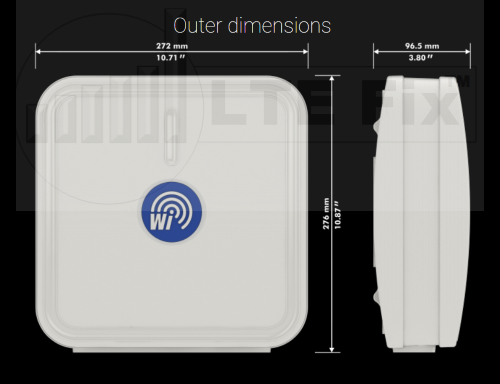

Outside Dimensions: 10.71 in X 10.87 in x 3.80 in

Medium Enclosure Outside Specs
Medium Enclosure Outside Specs

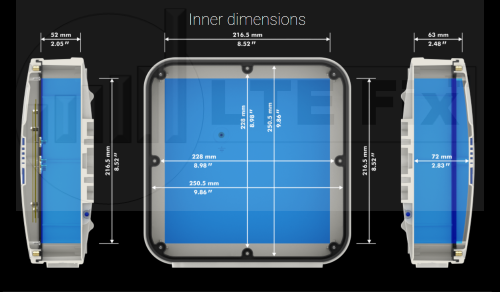

Inside Dimensions: 9.86 in x 9.86 in x  2.50 in

WiFix Med Enclosure Specs
WiFix Med Enclosure Specs



Included with the WiFiX enclosure:

  • WiSecure Mounting System
  • RJ45 waterproof IP67 cable gland/jack
  • PCB Mounting Stands/Stools and screws



The assortment of cutout options on the bottom of the enclosure allows adding external antennas with ease.

cutout-locations
Optional Cutout Locations



WiFiX systems are engineered of UV resistant ABS plastic material that is resistant to extreme weather conditions like rain, snow and humidity. They can safely operate in temperatures ranging from -40°C up to 80°C.  WiFix designed sealing systems guarantees a waterproofed level of IP67.



wifix-ip67
WiFix Systems are IP67 Waterproof

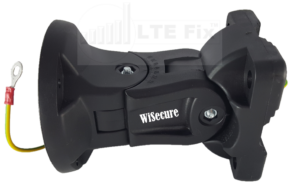

The WiSecure mounting system is engineered to couple stability and attractiveness in one product. Its design is made of a special fiberglass reinforced poly-amide plastic, which is super rigid–even in extreme weather conditions.  Its innovative design and composite makeup, compared to metal brackets, offers better performance and a rust free life-time. WiSecure further enables the antenna position and aligning in two separate polarization settings.



wisecure-mount
LTE Fix WiSecure Antenna Mounting System
WiSecure Antenna Mounting System
WiSecure Antenna Mounting System



NOTICE: This enclosure listing comes with ONE WiSecure enclosure Mount included with your purchase of the enclosure. You do not need to purchase a separate mounting system.



Weight 72 oz
Dimensions 17.25 × 11 × 4.75 in

Assembly Notes

RJ45 Bulkhead Cable Passthrough Assembly Steps
RJ45 Bulkhead Cable Passthrough Assembly Steps

2 reviews for WiFiX Medium Router PCB Enclosure Kit

  1. RonStacy

    Bad to the bones…includes everything a person needs to install a poe router. The mount is well designed with multiple adjustment settings. I suspect this enclosure will last outdoors for many years. Absolutely no cons.

  2. fonsi411

    Well made enclosure and solid adjustable mounting system. Certainly no china junk here. Has all the accessories to mount an internal router. Great box for the Cradlepoint CBA850 for a roof or pole mount.

Add a review

This site uses Akismet to reduce spam. Learn how your comment data is processed.

In stock

Warranty: 30 Days

OR
