1710 – 3800MHz 21dBi MIMO Grid Antenna

The WiFiX 1710 – 3800MHz 21dBi MIMO Grid Antenna is a 2×2 MIMO 5GNR Ready Parabolic Grid Directional Antenna.  This high powered addition to the WiFiX antenna lineup is ready to link up to any new 5GNR Sub 6Ghz bands, as well as many current high frequency 4G LTE cellular bands.  It features a cross polarized 2×2 MIMO Head mounted to a nearly 24″ Round Parabolic Grid to help pull in signals in the 1700Mhz to 3800Mhz frequency range.

This antenna also makes a very powerful 2.4Ghz WiFi antenna to extend your WiFi signal to the far reaches where needed.

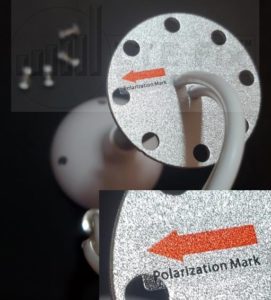

The special 2×2 MIMO feed horn on our unit is Cross Polarized and is marked for your installation convenience.

Our Parabolic Grid Antenna comes with two 10 inch antenna pigtails with Type N Female antenna connectors attached. We recommend sealing the antenna connectors with dielectric grease and self-bonding silicon tape, when installing any outdoor antenna and cabling.

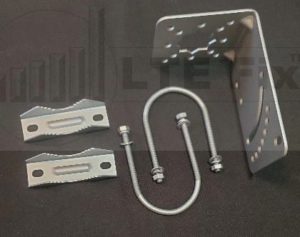

Installation Note: Our antennas always come with all the hardware you need to make installation simple.  The feed horn comes with hardware to mount it in any configuration you like (X polarization to the tower or Linear).

We find that mounting the feed horn with the polarization mark at a 45 degree angle (X polarization) tends to give the best results, but you will want to test your own configuration as every cell tower and situation is NOT the same.

Join us over on LTE Hacks for discussions on LTE and 5G cellular technology. We talk about modems, antennas, routers and much more cellular and internet technology.

A review of the 1710-2690MHz 3300-3800MHz 21dBi MIMO Grid Antenna by one of your customers is available HERE.
