700-2700MHz WiFi Cellular 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector

$105.65

Designed to accommodate internal installation of a small LTE router or PCB

    WiFiX AO 1OA727V4 RJ is a Cellular MIMO 2×2 4dBi omni-directional antenna with an RJ45 cable connector bulkhead

    The AO 1OA727V4 RJ Cellular 4dBi MIMO antenna is a wide band omni-directional antenna engineered to improve signal strength and reception over a wide range of frequencies and applications.
    It is ideal for RVs, campers, over the road truckers, and remote locations with hard to determine signal direction. Ideal locations can be rural, suburban, urban and other locations where the mobile signal is poor or less than desirable, or where a better signal is required to take advantage of carrier aggregation.

    Our wide range design allows the antenna to be carrier neutral, covering the 700/800/850/1700/1800/1900/2100/2300/2500/2600/2700 frequencies.  Its aesthetic appearance accommodate installations at most any location, even for high demanding applications and customers.

    The antenna component and circuitry are integrated within a top quality outdoor weatherproof enclosure system. (6.3″ x 6.3″ x 9.45″)

    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 10
    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 10
    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 9
    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 9



    The AO 1OA727V4 RJ provides an internal enclosure for installing small router pcbs, hotspots and/or a wifi access point.  It is especially suited for PoE applications by installing its RJ45 waterproof IP67 cable gland/jack (included) in the single cutout hole.  3M adhesive standoff mounts (boss/stands) are included to secure an internal router or PCB in place.

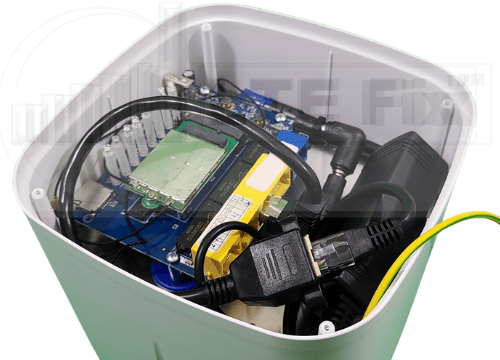

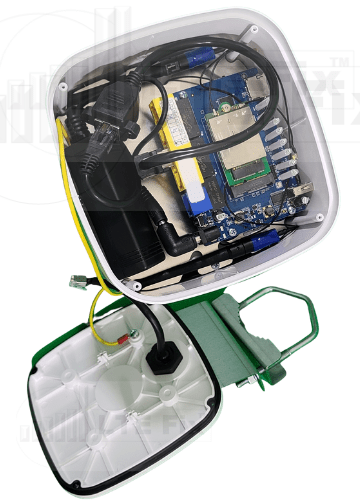

    Example installation with our NEXQ6GO router PC board and our 48V to 12V POE Splitter inside:

    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector POE Install 1
    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector POE Install 1
    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector POE Install 2
    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector POE Install 2



    The enclosure is equipped with locations where additional holes may be drilled to install another bulkhead connector or external SIM extension gland.

    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 6
    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 6

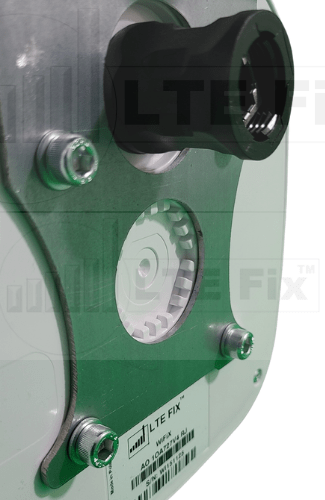

    The system includes 2 x U.FL pigtails mounted directly to the antenna’s backing plate.  This allows a Mini PCI-E modem (i.e., Quectel EP06-A) to connect directly to the antenna components.

    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 7
    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 7

    Adhesive PCB Feet are included for PC Board installation inside the enclosure, as well as an ip67 rated RJ45 connector bulkhead.



    The U.FL Male connectors can be coupled to a wide range of devices by using one of our TS-9, SMA Male Right Angle (or Straight) as well as MHF4 connectors for M.2 modems (i.e., EM7565, EM7455….).



    Proper assembly for the RJ45 Bulkhead Seal:

    RJ45 Bulkhead Cable Passthrough Assembly Steps
    RJ45 Bulkhead Cable Passthrough Assembly Steps



    The WiFix AO 1OA727V4 RJ is suitable for indoor and outdoor (IP67) installations, both wall and pole mask mounting.

    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 3
    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 3



    WiFix systems are engineered of UV resistant ABS plastic material that is resistant to extreme weather conditions like rain, snow and humidity. They can safely operate in temperatures ranging from -40°C up to 80°C.  WiFix designed sealing systems guarantees a waterproofed level of IP67.

    wifix-ip67
    WiFix Systems are IP67 Waterproof



    Weight 49 oz
    Dimensions 6.5 × 6.75 × 13.5 in
    Antenna Type

    4G LTE Outdoor Omni-Directional, WiFi Outdoor Omni-Directional

    Carrier

    AT&T, Boost Mobile (Sprint), Cricket Wireless (AT&T), FreedomPoP (Sprint), MetroPCS (T-Mobile), Mint (T-Mobile), Project Fi (Sprint, T-Mobile), Simple Mobile (T-Mobile), Sprint, T-Mobile, U.S. Cellular, Verizon, Virgin Mobile (Sprint)

    Antenna Cable Connector 1

    U.FL

    Specifications

    LTE SPECIFICATION

    FREQUENCY 0.694-0.96 GHz
    1.7 – 2.2 GHz
    2.2 – 2.7 GHz

    Supported LTE bands:

    1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19,
    20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38,
    39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 85



    GAIN

    0.694 – 0.96 GHz : 2 dBi
    1.7 – 2.2 GHz : 2 dBi
    2.2 – 2.7 GHz : 4 dBi



    VSWR <1.60, max <2.00

    BEAMWIDTH 360°/35° ±5°

    POLARIZATION Vertical

    IMPEDANCE 50 Ω



    MECHANICAL SPECIFICATION

    MATERIALS ABS, aluminum, galvanized steel
    INGRESS PROTECTION IP67



    DIMENSIONS
    160 x 160 x 240 mm
    6.3 x 6.3 x 9.45 inch



    WEIGHT

    1.5 kg / 3.31 lbs



    OPERATING TEMPERATURE
    From -40°C to 75°C / From -40°F to 167°F

    Carriers | Bands

    Carriers | Bands

    The AO 1OA727V4 RJ is a wide band|frequency cellular antenna–meaning it is compatible with the vast majority of carriers.

    • LTE band -1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85
    • WiMAX – 2.3 GHz, 2.5 GHz, 700 MHz
    • 3G – 2100 MHz, 850 MHz, 900 MHz
    • GSM – 1800 MHz, 1900 MHz, 850 MHz
    • RFiD – 2400 – 2483 MHz, 865 – 868 MHz, 902 – 928 MHz
    • ISM – 2400-2483 MHz, 868-870 MHz
    • WLAN – 2.4 GHz
    • Bluetooth – 2400-2483 MHz

    Mounting Hardware

    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 8
    Included Mounting Hardware



    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector 5
    Assembled Mounting Hardware



    700-2700MHz WiFi 4G LTE 4dBi Omni-Directional MIMO Antenna (± 45°) RJ45 Connector
    Assembled and installed
