4×4 MIMO Antenna 700-3800MHz Cellular 8dBi Directional 4×4 (± 45°) RJ45 Connector

$294.15

Designed to accommodate 4 x 4 MIMO antenna applications

    WiFiX AD4M 1DP738X8 RJ is a cellular 4 x 4 MIMO  X-Polarity 8dBi directional panel antenna with IP67 rated RJ45 bulkhead connector

    The WiFiX 4×4 MIMO AD4M 1DP738X8 RJ 8dBi MIMO antenna is a wide band directional panel antenna engineered to improve signal strength and reception over a wide range of 4G/LTE/5G frequencies and applications.  It is ideal for rural, suburban and other locations where the mobile signal is poor or less than desirable, or where a better signal is required to take advantage of carrier aggregation.

    Note: We customized the AD4M 1DP738X8 RJ further to allow installing your modem and router, as well as anything else you can, inside the enclosure with the antenna. Just like our popular WiFix 2×2 MIMO version of this antenna.

    Like the popular WiFiX exclusive antenna AD4M 1DP738X8 NF we have customized this antenna with a new frequency range. This new frequency range is now 700Mhz-3800Mhz to include the upcoming 5G Sub 6Ghz mid-band cellular frequency bands. This antenna has also been tested to pickup up Band 71.

    Its wide range design allows the antenna to be carrier neutral, covering the 700/800/850/1700/1800/1900/2100/2300/2500/2600/2700/3800 frequencies.  Its aesthetic appearance accommodate installations at most any location, even for high demanding applications and customers.

    The antenna component and circuitry are integrated within our top quality WiFiX Extra Large (15.43 in x 15.59 in x 3.80 in) enclosure system.



    We also offer this exact antenna in a version that is sealed with 4 Type N Female Antenna connectors on the case.

    Outside profiles of the 4×4 MIMO antenna AD4M 1DP738X8 RJ

    700-3800MHz Cellular 8dBi Directional 4x4 MIMO Antenna (± 45°) Outer Dimensions
    700-3800MHz Cellular 8dBi Directional 4×4 MIMO Antenna (± 45°) Outer Dimensions





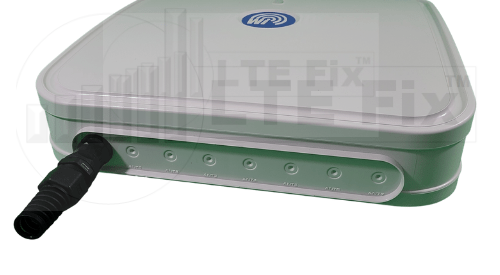

    The AD4M 1DP738X8 NF is equipped with IP67 rated RJ45 Bulkhead Connector

    700-3800MHz Cellular 8dBi Directional 4x4 MIMO Antenna (± 45°) RJ45 Connector EndShot
    700-3800MHz Cellular 8dBi Directional 4×4 MIMO Antenna (± 45°) RJ45 Connector EndShot

    Inner Dimensions of the AD4M 1DP738X8 RJ

    700-3800MHz Cellular 8dBi Directional 4x4 MIMO Antenna (± 45°) Inner Dimensions
    700-3800MHz Cellular 8dBi Directional 4×4 MIMO Antenna (± 45°) Inner Dimensions



    The internal “Free Space” underneath the antenna back plane is roughly 13.75″ x 13.75″ x 1″
    Installing a router and other equipment inside will require short pc board standoffs. You can modify our Adhesive Router PC Board Mounting Pads by cutting them down. Make sure the overall height of the router is under 1″. We also sell a Low Profile Adhesive Router PCB Mounting Pads kit.

    Note: It is the customers responsibility to ensure their equipment will fit inside the enclosure, we cannot accept returns for items that don’t meet the customers needs because they did not do their research first. We cannot claim responsibility for customer damaged items due to lack of experience or negligence in installation or handling methods.

    Example of internal installations:

    WiFiX WG1608 Inside 4x4 AD4M 1DP738X8 RJ with 12V POE Splitter Install Example

    WiFix WG1608D-M, and a 5G Modem, inside the AD4M 1DP738X8 RJ with a 12V POE Splitter
    Installation example

    WG1608 Inside 4x4 AD4M 1DP738X8 RJ with 12V POE Splitter Install Example 2

    Needed modifications to fit equipment inside:

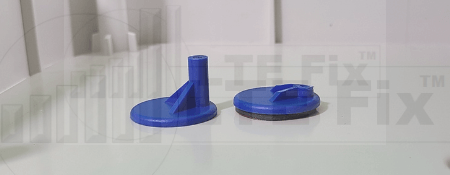

    Shortened PCB Standoff Feet
    Shortened PCB Standoff Feet

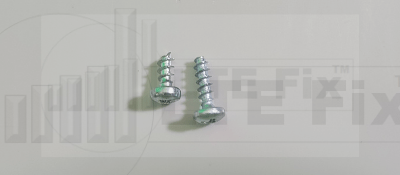

    Cut Screws for Shortened PCB Feet
    Cut the screws down that come with the Adhesive PCB Feet for Shortened PCB Feet, about 1/8″ off.

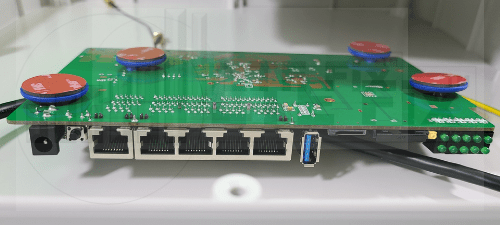

    WG1608 with shortened PCB Feet Inside 4x4 AD4M 1DP738X8 RJ
    WG1608D-M with shortened adhesive PCB feet inside a 4×4 AD4M 1DP738X8 RJ

    NOTE: An Adhesive Router PC Board Mounting Pads kit is not included with the c. We also sell Low Profile Adhesive Router PCB Mounting Pads kits in our Mounts category.



    The AD4M 1DP738X8 RJ antenna has four U.fl connectors inside on RG178 cabling coming from each of the four antenna elements. To use this with an M.2 style modem, that has MHF4 connectors, you must adapt these connectors. We carry them for your convenience:  MHF4 to U.FL Pigtail Adapter for M.2 Modem Connectors. You will need four of them.

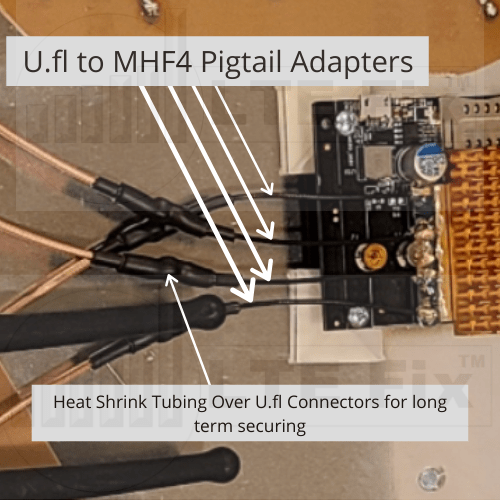

    Example U.fl to MHF4 pigtail Adapter installation:

    UFL to MHF4 Pigtail Adapter on 4x4 MIMO RJ Panel Antenna
    UFL to MHF4 Pigtail Adapter on 4×4 MIMO RJ Panel Antenna



    Proper assembly for the RJ45 Bulkhead Seal:

    RJ45 Bulkhead Cable Passthrough Assembly Steps
    RJ45 Bulkhead Cable Passthrough Assembly Steps



    The WiFiX AD4M 1DP738X8 RJ is suitable for indoor and outdoor (IP67) installations, both wall and pole mask mounting.



    wall-mask-installations
    Wall and Mask Installations



    WiFix systems are engineered of UV resistant ABS plastic material that is resistant to extreme weather conditions like rain, snow and humidity. They can safely operate in temperatures ranging from -40°C up to 80°C.  WiFix designed sealing systems guarantees a waterproofed level of IP67.

    wifix-ip67
    WiFix Systems are IP67 Waterproof



    The WiSecure mounting system is engineered to couple stability and attractiveness in one product. Its design is made of a special fiberglass reinforced polyamide plastic, which is super rigid–even in extreme weather conditions.  Its innovative design and composite makeup, compared to metal brackets, offers better performance and a rust free life-time. WiSecure further enables the antenna position and aligning in two separate polarization settings.



    wisecure-mount
    LTE Fix WiSecure Antenna Mounting System
    WiSecure Antenna Mounting Detail
    WiSecure Antenna Mounting Detail



    NOTICE: This antenna listing comes with ONE WiSecure Antenna Mount included with your purchase of the antenna. You do not need to purchase a separate mounting system.

    Weight 160 oz
    Dimensions 23.25 × 16 × 4.75 in
    Antenna Type

    4G LTE Outdoor Directional

    Carrier

    AT&T, Boost Mobile (Sprint), Cricket Wireless (AT&T), FreedomPoP (Sprint), MetroPCS (T-Mobile), Mint (T-Mobile), Project Fi (Sprint, T-Mobile), Simple Mobile (T-Mobile), Sprint, T-Mobile, U.S. Cellular, Verizon, Virgin Mobile (Sprint)

    Antenna Cable Connector 1

    U.FL

    Specifications

    Carriers | Bands

    Carriers | Bands

    The AD4M 1DP738X8 NF  is a wide band|frequency antenna–meaning it is compatible with the vast majority of carriers that use frequencies between 700Mhz and 3800Mhz.

    • LTE and 5G band – 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 48, 66, (71 can be picked up, but not at the listed rated dBi, see the Specifications document for information on Gain at in the 600-700Mhz range for B71)
    • WiMAX – 2.3 GHz, 2.5 GHz, 700 MHz
    • 3G – 2100 MHz, 850 MHz, 900 MHz
    • GSM – 1800 MHz, 1900 MHz, 850 MHz
    • RFiD – 2400 – 2483 MHz, 865 – 868 MHz, 902 – 928 MHz
    • ISM – 2400-2483 MHz, 868-870 MHz
    • WLAN – 2.4 GHz
    • Bluetooth – 2400-2483 MHz

    4x4 MIMO Connections

    When hooking up your cellular modem to the WiFiX AD4M 1DP738X8 RJ antennas internal U.fl connectors, reference the below graphic to ensure optimum configuration.

    700-3800MHz Cellular 8dBi Directional 4x4 MIMO Antenna (± 45°) RJ45 Connector-Antenna-Pairs
    700-3800MHz Cellular 8dBi Directional 4×4 MIMO Antenna (± 45°) RJ45 Connector-Antenna-Pairs

    NOTE: Be sure to not mix the connectors from one pair to the other. The M and D labeled cables can be reversed, as they do not really matter. But you can not mix a connector in the Primary pair over into the connector of the Secondary pair.

    Example connection to a Quectel EM160R-GL modem.

    700-3800MHz Cellular 8dBi Directional 4x4 MIMO Antenna (± 45°) RJ45 Connector-Antenna-Pairs-Modem-Example
    700-3800MHz Cellular 8dBi Directional 4×4 MIMO Antenna (± 45°) RJ45 Connector-Antenna-Pairs-Modem-Example

    IMPORTANT NOTE: When connecting to M.2 modems equipped with MHF4 antenna connectors (Like the Quectel EM160R, RM500Q, or Telit LM960A18 modems) you will need a quantity of four (4) MHF4 to U.FL Pigtail Adapter for M.2 Modem Connectors, as the WiFiX AD4M 1DP738X8 RJ antenna comes equipped with U.fl style antenna connectors on the end of each RG176 cable coming off of the antenna backplane.
