Directional MIMO Antenna 2400-2700MHz WiFi 5G 4G LTE 19dBi 2×2 (± 45° ) – RJ45 Connector

$204.83

Designed to accommodate internally installation of LTE router or PCB

    WiFiX ADM 1DE2427X19 RJ is a 19dBi MIMO 2×2 X-Polarity directional panel antenna with spacious enclosure

    The ADM 1DE2427X19 RJ is a WiFi 4G LTE 19dBi MIMO antenna is a high quality directional panel with dual X polarity (slant ± 45°) and designed to accommodate devices at MIMO 2×2. The antenna is engineered for WiFi | 5G | 4G | LTE applications, as well as PTP (Point-to-Point) and PMP (Point-to-Multipoint) as a client antenna.  The antenna provides a rather spacious internal enclosure for installing most sizes of routers and/or PCB’s.

    We also offer the WiFiX ADM 1DE2427X19 NF which is equipped with Type N Female connectors to accommodate applications requiring 50 ohm low loss coax cables.

    The ADM 1DE2427X19 RJ is a narrow band directional panel antenna engineered to improve signal strength and reception over the 2300MHz to 2700MHz frequency range.  It is ideal for rural, suburban and other locations where the mobile signal is poor or less than desirable, or where a better signal is required to take advantage of carrier aggregation. Its narrow range targets LTE FDD Band 7 and TDD Bands 38, 40 and 41, Bluetooth and WLAN 2.4GHz (802.11 b/g/n).  Its unique dimensions and aesthetic appearance accommodate installations at most any location, even for high demanding applications and customers.

    The antenna component and circuitry are integrated within our top quality WiFix Large (15.5 in x 15.5 in x 3.8 in) enclosure system.

    wifix-large-enclosure
    LTE Antenna Large Enclosure
    wifix-large-enclosure
    WiFix Large Enclosure

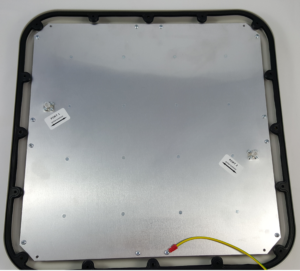

    The system includes 2 x SMA Female connectors within the enclosure, mounted directly to the antenna’s backing plate.

    2 x U.FL Female (Right Angle) to SMA Male (Right Angle) 8 inch (20cm) RG178 (1.78mm) Pigtail Cables are needed when connecting a mini PCI-E modem (i.e., Sierra Wireless MC7455) to the antenna backing.

    WiFix-dm25x19-internal-SMA
    SMA Female Antenna Connectors

    The ADM 1DE2427X19 RJ‘s design allows easy installation of a router or PCB inside the antenna enclosure (such as our PoE compatible WG3526-P) by installing its RJ45 waterproof IP67 cable gland/jack (included) in the single cutout hole.  See this TUTORIAL.

    WiFix Single

    The antenna may also be converted for use with 50 ohm low loss coax cables.  The cutouts provide locations where additional holes may be drilled to install SMA, RP-SMA, Type N, or another other bulkhead connectors.



    N Type Female Bulkhead to SMA Male (Right Angle) Pigtail





    The WiFix ADM 1DE2427X19 RJ is suitable for both indoor and outdoor (IP67) installations, both wall and pole mask mounting.



    wall-mast-installations
    Wall and Mast Installations



    WiFix systems are engineered of UV resistant ABS plastic material that is resistant to extreme weather conditions like rain, snow and humidity. They can safely operate in temperatures ranging from -40°C up to 80°C.  WiFix designed sealing systems guarantees a waterproofed level of IP67.

    wifix-ip67
    WiFix Systems are IP67 Waterproof



    The WiSecure mounting system is engineered to couple stability and attractiveness in one product. Its design is made of a special fiberglass reinforced polyamide plastic, which is super rigid–even in extreme weather conditions.  Its innovative design and composite makeup, compared to metal brackets, offers better performance and a rust free life-time. WiSecure further enables the antenna position and aligning in two separate polarization settings.



    wisecure-mount
    LTE Fix WiSecure Antenna Mounting System
    WiSecure Antenna Mounting System
    WiSecure Antenna Mounting System

    The Original SKU has changed from: DM25X19 to: ADM 1DE2427X19 RJ



    NOTICE: This antenna listing comes with ONE WiSecure Antenna Mount included with your purchase of the antenna. You do not need to purchase a separate mounting system.

    Weight 123 oz
    Dimensions 16.75 × 20.75 × 4.75 in
    Antenna Type

    4G LTE Outdoor Directional

    Carrier

    Boost Mobile (Sprint), FreedomPoP (Sprint), Sprint, Virgin Mobile (Sprint)

    Antenna Cable Connector 1

    N Type Female Straight, RJ45 Waterproof IP67

    Specifications

    DM25X19-specs
    4G LTE MIMO Antenna DM25X19



    Carriers | Bands

    The DM25X19 is a narrow band|frequency antenna:

    • LTE Bands – 7, 38, 40, 41, 2305-2360
    • WLAN – 2.4 GHz
    • WiMAX – 2.3 GHz, 2.5 GHz
    • RFiD – 2400 – 2483 MHz
    • Bluetooth – 2400-2483 MHz
    • ISM – 2400-2483 MHz
    Applications
    • PtP connections
    • PtM Connections
    • System Integration
