HP Lightning Arrester Type N Male to Type N Female Bulkhead

SKU: LAHPj8996A
About this Item

Lightning Arrester 50 Ohm 100-6000MHz N Connectors

$28.99

Previous image
Next image

Description

Lightning Arrester 50 Ohm 100-6000MHz.

High quality HP ProCurve Networking Lightning Arrester.

Model: J8996A

Insertion loss: 0.4 dB max.
Impulse Breakdown voltage:  (1 KV/microsec max.) 700 V Nom.
VSWR: 1.4:1 max.
Impulse Discharge Current: 5,000 A
Insulation Resistance: 50 Meg Ohm
Input RF Power, 100 MHz / 6000 MHz: 250 W / 10 W
Connectors:  Type N (female) to Type N (male)
Dimensions: 2.4″ x 1.2″ x 0.9″
Enclosure: Nickel-plated Brass

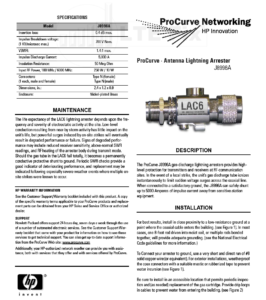

HP J8996A Lightning Arrester
HP J8996A Lightning Arrester

SKU: LAHPj8996A Categories - , Tags - , , ,

2 reviews for HP Lightning Arrester Type N Male to Type N Female Bulkhead

  1. photoacer –

    I researched these before I bought them and came with good reviews. Good quality. Installed 2 on mimo antenna. Suggest silicon on the threads. It is how Directv has it installers do on coaxial cable between N connectors and heavy wire for ground

  2. Melvin King –

    Good quality. Installed 2 on mimo antenna. Suggest using dielectric grease between N connectors and heavy wire for ground
